不銹鋼閥門
(BV-3PL) 精密鑄造316三片式長管對焊球塞閥
3-PC EXTENDED BUTT WELD BALL VALVE.
FULL PORT. 1000 WOG/PN63.
BODY: CF8M (DIN 1.4408)
SIZE: 1/4”~4”
FULL PORT. 1000 WOG/PN63.
BODY: CF8M (DIN 1.4408)
SIZE: 1/4”~4”
(SV-S9L/SVP-S9L) 低揚程不銹鋼304安全閥把手式
ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
(BV-3PS-BW/BV-3PC-BW) 精密鑄造316三片式對焊球塞閥(全量式) 1000 WOG
3-PC FULL PORT BALL VALVE
BUTT WELD END ISO 1127, DIN-2463,
ANSI B36.19. 1000 WOG/PN63.
LOCKING DEVICE.
BODY: CF8M (DIN 1.4408)
WCB (DIN 1.0619)
SIZE: 1/4”~4”
BUTT WELD END ISO 1127, DIN-2463,
ANSI B36.19. 1000 WOG/PN63.
LOCKING DEVICE.
BODY: CF8M (DIN 1.4408)
WCB (DIN 1.0619)
SIZE: 1/4”~4”
(SV-S9DA/SVP-S9DA) 低揚程不鏽鋼304安全閥密閉式-異徑(1x2)
ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
(SV-S9DL/SVP-S9DL) 異徑低揚程不銹鋼304安全閥把手式 (1x2)
ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
(SV-S8DA) LOW LIFT ST.ST.316 SAFETY RELIEF VALVE (1x2)
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)
(SV-S8DL/SVP-S8DL) 異徑低揚程不銹鋼316安全閥把手式 (1x2)
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)

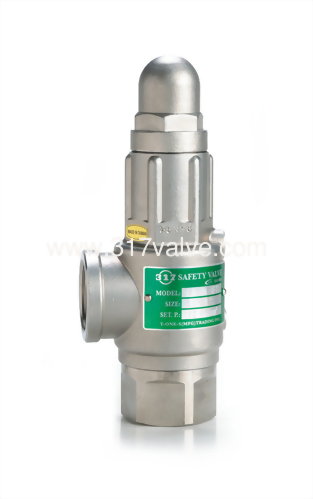

(SV-S8DA(FT)) 雙內牙異徑不銹鋼316安全閥密閉式 (1x2)
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)
DOUBLE FEMALE SCREWED. (FT)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)
DOUBLE FEMALE SCREWED. (FT)

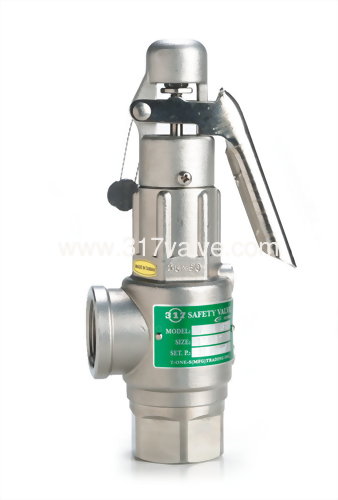

(SV-S8DL(FT)) 雙內牙異徑不銹鋼316安全閥把手式 (1x2)
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)
DOUBLE FEMALE SCREWED. (FT)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)
DOUBLE FEMALE SCREWED. (FT)

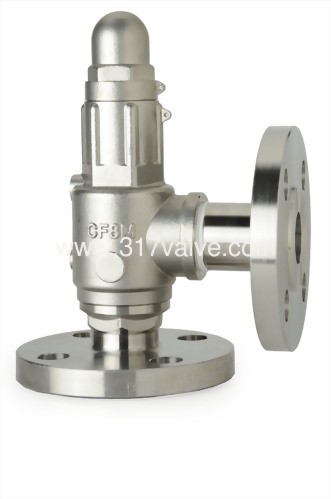

(SV-S8DAF/SVP-S8DAF) 法蘭口異徑不銹鋼316安全閥密閉式 (1x2)
ST.ST.316 SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2)SEAL: PTFE (SVP-S8DAF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET FLANGE 304 / OUTLET FLANGE 304
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2)SEAL: PTFE (SVP-S8DAF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET FLANGE 304 / OUTLET FLANGE 304
(CI-SC/WCB-SC/SS304-SC/SS316-SC) 鑄鐵/鑄鋼/不鏽鋼304/不鏽鋼316 單瓣對夾式逆止閥
CAST IRON WAFER CHECK VALVE
SINGLE DOOR TYPE.
BODY: CAST IRON. SEAT: NBR.
SIZE: 1/2”~20”
SINGLE DOOR TYPE.
BODY: CAST IRON. SEAT: NBR.
SIZE: 1/2”~20”

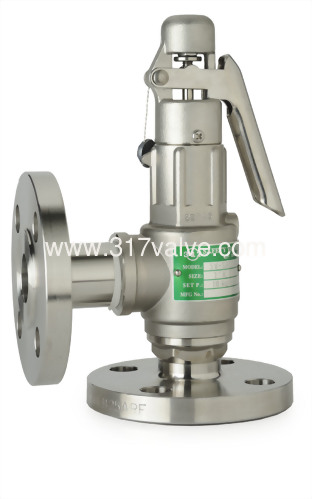

(SV-S8DLF/SVP-S8DLF) 法蘭口異徑不銹鋼316安全閥把手式 (1x2)
ST.ST.316 SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2) SEAL: PTFE (SVP-S8DLF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
INLET FLANGE / OUTLET FLANGE.
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2) SEAL: PTFE (SVP-S8DLF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
INLET FLANGE / OUTLET FLANGE.
(SS316-S67) MF低揚程不銹鋼316安全閥密閉式
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET: MALE / OUTLET: FEMALE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET: MALE / OUTLET: FEMALE
(BV-3PT) 精密鑄造316三片式衛生級球塞閥
3-PC SANITARY BALL VALVE
T-CLAMP TYPE. LOCKING DEVICE.
FULL PORT. 1000 WOG/PN63.
BODY: CF8M (DIN 1.4408)
SIZE: 1/2”~4”
T-CLAMP TYPE. LOCKING DEVICE.
FULL PORT. 1000 WOG/PN63.
BODY: CF8M (DIN 1.4408)
SIZE: 1/2”~4”
(SS316-S87) 雙內牙不銹鋼316密閉式安全閥 (無把)
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET / OUTLET: FEMALE SCREWED
(Spring adjusting range: ± 1 kg/cm2)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET / OUTLET: FEMALE SCREWED
(Spring adjusting range: ± 1 kg/cm2)
