低揚程安全閥

確保設備安全,預防事故並減少損失。

安全閥的選擇取決於設備,流體特性,工作溫度,設定壓力和排放能力。 並且還必須仔細評估各種條件,例如環境的使用,準確性和穩定性。

本公司“ 317”系列安全洩壓閥的特點是在啟動時調節閥門的上升和放出壓力,是最小,最輕的閥門,也可用於非腐蝕性氣體(空氣,氧氣,氮氣等) 蒸汽和液體,例如水和油。


顯示模式:

(SV-B27/SVP-B27) 低揚程鑄銅安全閥 (舊型號: S3W-A)

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS.
SEAL: PTFE (SVP-B27)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SV-B29/SVP-B29) 低揚程鑄銅安全閥把手式 (OLD MODEL: S3W-LR)

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS.
SEAL: PTFE (SVP-B29)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

(SV-B9A/SVP-B9A) 低揚程鑄銅安全閥密閉式

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS.
SEAL: PTFE (SVP-B9A)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SV-B9L/SVP-B9L) 低揚程鑄銅安全閥把手式

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS.
SEAL: PTFE (SVP-B9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)

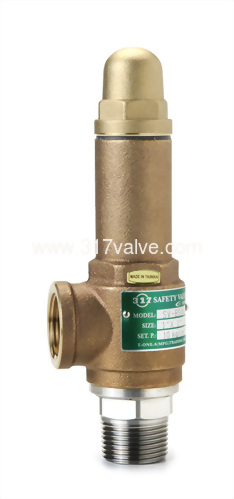

(SV-BS9A/SVP-BS9A) 低揚程鑄銅安全閥密閉式-304閥座

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: SUS304.
SEAL: PTFE (SVP-BS9A)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SV-BS9L) 低揚程鑄銅安全閥把手式-304閥座

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: SUS304.
SEAL: PTFE (SVP-BS9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

(SV-BS9DA/SVP-BS9DA) 異徑低揚程鑄銅安全閥密閉式 (1x2)

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-BS9DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

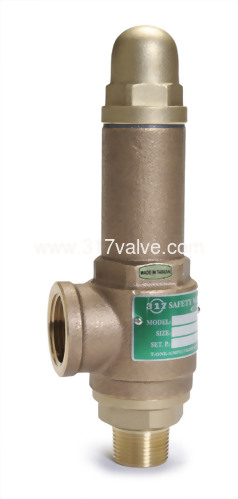

(SV-B9DA/SVP-B9DA) 異徑低揚程鑄銅安全閥密閉式 (1x2)

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS. (1*2)
SEAL: PTFE (SVP-B9DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

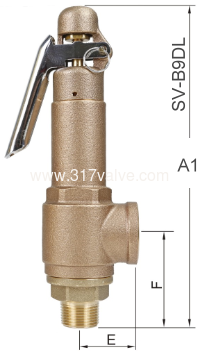

(SV-B9DL/SVP-B9DL) 異徑低揚程鑄銅安全閥把手式 (1x2)

BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS. (1*2)
SEAL: PTFE (SVP-B9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

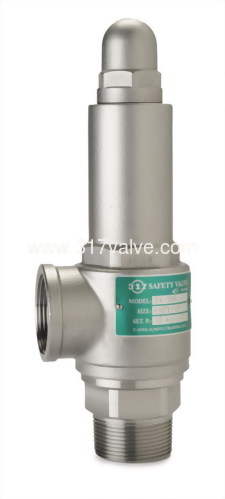

(SV-S9A/SVP-S9A) 低揚程不銹鋼304安全閥密閉式

ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9A)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

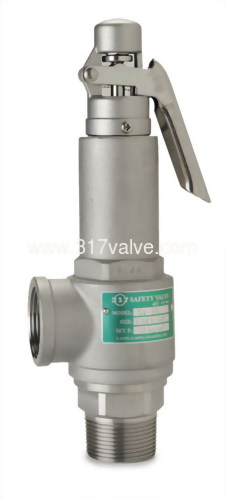

(SV-S9L/SVP-S9L) 低揚程不銹鋼304安全閥把手式

ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

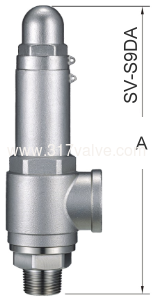

(SV-S9DA/SVP-S9DA) 低揚程不鏽鋼304安全閥密閉式-異徑(1x2)

ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)

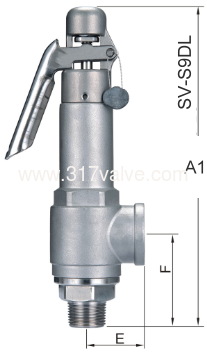

(SV-S9DL/SVP-S9DL) 異徑低揚程不銹鋼304安全閥把手式 (1x2)

ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

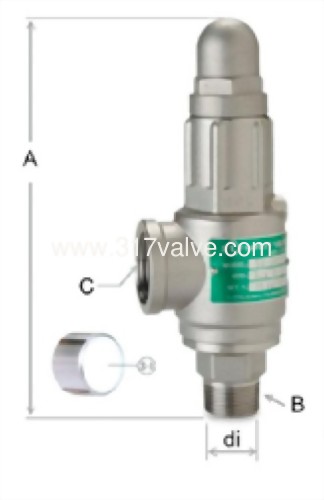

(SV-S8DA) 低揚程不鏽鋼316安全閥密閉式-異徑(1x2)

ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DA)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITHOUT LEVER)

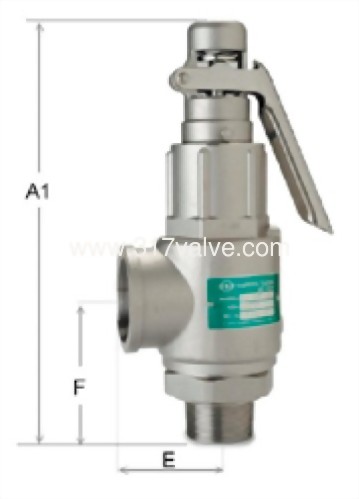

(SV-S8DL) 異徑低揚程不銹鋼316安全閥把手式 (1x2)

ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)
