不鏽鋼伸縮接頭 & 防震接頭(軟管)
不鏽鋼軟管接頭的功用是補償熱膨脹或收縮過程中一般管道的位移。而不鏽鋼撓性防震接頭可隔離振動並降低噪音。
調懋根據管道中的運動類型、連接器和工作壓力，提供多種不鏽鋼軟管及伸縮接頭：
- 軸向運動：JF150系列、JF250系列、JF400系列、JF1000系列、JF500HE系列
- 橫向運動：JF800系列
- 軸向和橫向運動：JF850系列
- 角運動：JF100系列
- 用於減少管道振動的撓性接頭（防震接頭）：JF500系列
- 金屬軟管：伸縮囊為Omega型，分為編織或非編織，配有法蘭。有焊接端或擰緊的外螺紋端可選：JF600系列
成立於1968年，調懋致力於改進閥門生產技術，提高精度和穩定性以滿足客戶需求。歡迎查看下方的不鏽鋼軟管產品，若有相關需求歡迎聯絡我們以獲得更多產品資訊或技術支援。

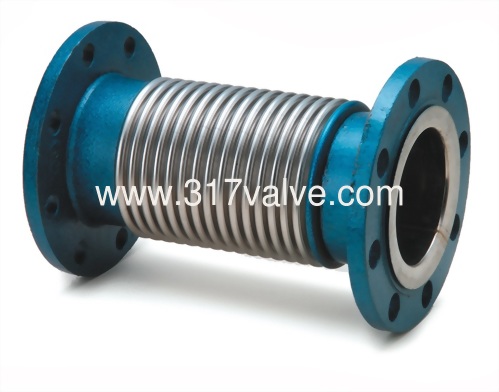

(JF-150 SERIES) 不鏽鋼伸縮接頭
BELLOWS EXPANSION JOINT
VAN STONED END TYPE WITH INTERNAL SLEEVE
BELLOWS/SLEEVE: 300 SERIES ST.ST.
FLANGE: DUCTILE, CARBON STEEL,
ST.ST. 300 SERIES.
W.P.: 10 BARS. SIZE: 40~300MM.
VAN STONED END TYPE WITH INTERNAL SLEEVE
BELLOWS/SLEEVE: 300 SERIES ST.ST.
FLANGE: DUCTILE, CARBON STEEL,
ST.ST. 300 SERIES.
W.P.: 10 BARS. SIZE: 40~300MM.

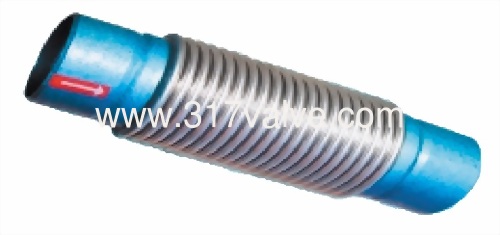

(JF-250 SERIES) 不鏽鋼伸縮接頭
BELLOWS EXPANSION JOINT
WITH TUBE & FLANGED TYPE
INTERNAL SLEEVE (OPTION)
BELLOWS/SLEEVE: 300 SERIES ST.ST.
FLANGE: DUCTILE, CARBON STEEL,
ST.ST. 300 SERIES.
W.P.: 10 BARS. SIZE: 15~600MM.
WITH TUBE & FLANGED TYPE
INTERNAL SLEEVE (OPTION)
BELLOWS/SLEEVE: 300 SERIES ST.ST.
FLANGE: DUCTILE, CARBON STEEL,
ST.ST. 300 SERIES.
W.P.: 10 BARS. SIZE: 15~600MM.
(JF-400 SERIES) BELLOWS EXPANSION JOINT
BELLOWS EXPANSION JOINT
WELDED WITH TUBE END
MULTIPLY BELLOWS.
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
WELDED WITH TUBE END
MULTIPLY BELLOWS.
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
(JF-800 SERIES) 不鏽鋼伸縮接頭
BELLOWS EXPANSION JOINT
WELDED WITH TUBE END
TWO MULTIPLY BELLOWS.
*FLANGES (OPTION)
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 50~600MM.
WELDED WITH TUBE END
TWO MULTIPLY BELLOWS.
*FLANGES (OPTION)
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 50~600MM.
(JF-100 SERIES) 法蘭外筒包覆式不鏽鋼伸縮接頭
BELLOWS EXPANSION JOINT
WELDED WITH TUBE END
FLANGES AND EXTERNAL COVER
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
WELDED WITH TUBE END
FLANGES AND EXTERNAL COVER
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
(JF-500 SERIES) BELLOWS FLEXIBLE JOINT / COMPENSATOR / FLEXIBLE CONNECTOR
BELLOWS FLEXIBLE JOINT
DE-VIBRATION VAN STONED TYPE
BELLOWS: 300 SERIES ST.ST.
FLANGE: DUCTILE, C/S, ST.ST.
TIE RODS (OPTIONAL): C/S, ST.ST.
W.P.: 10, 20 BARS. SIZE: 40~300MM.
DE-VIBRATION VAN STONED TYPE
BELLOWS: 300 SERIES ST.ST.
FLANGE: DUCTILE, C/S, ST.ST.
TIE RODS (OPTIONAL): C/S, ST.ST.
W.P.: 10, 20 BARS. SIZE: 40~300MM.
(JF-500HE SERIES) 防震接頭(軟管)
BRAIDED HOSE FLEXIBLE JOINT
DOUBLE SLEEVES AND FLANGES
BELLOWS: 300 SERIES ST.ST.
FLANGE: DUCTILE, C/S, ST.ST.
TIE RODS: C/S, ST.ST.
SIZE: 32~600MM.
DOUBLE SLEEVES AND FLANGES
BELLOWS: 300 SERIES ST.ST.
FLANGE: DUCTILE, C/S, ST.ST.
TIE RODS: C/S, ST.ST.
SIZE: 32~600MM.

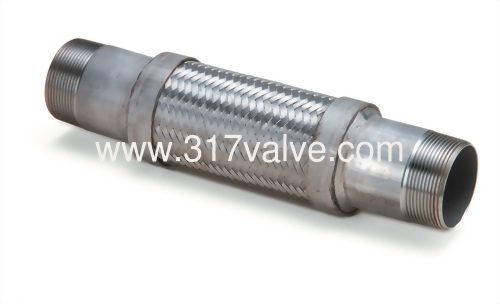

(JF-500T SERIES) 覆網防震接頭(軟管)
BRAIDED HOSE FLEXIBLE JOINT
THREAD END TYPE
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
SCREWED END: C/S, ST.ST.
SIZE: 15~100MM.
THREAD END TYPE
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
SCREWED END: C/S, ST.ST.
SIZE: 15~100MM.
(JF-400BW SERIES) 不鏽鋼覆網式防震軟管
BELLOWS EXPANSION JOINT
BRAIDED HOSE FLEXIBLE JOINT
WELDED WITH TUBE END AND FLANGES.
NO EXPANSIBILITY.
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
TUBE END: C/S, ST.ST.
SIZE: 15~300MM.
BRAIDED HOSE FLEXIBLE JOINT
WELDED WITH TUBE END AND FLANGES.
NO EXPANSIBILITY.
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
TUBE END: C/S, ST.ST.
SIZE: 15~300MM.
(JF-600/600M SERIES) #316法蘭口覆網式防震軟管*一固一活
BRAIDED HOSE FLEXIBLE JOINT
FLANGED END TYPE
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
FLANGE: CARBON STEEL, ST.ST.
SIZE: 15~300MM.
FLANGED END TYPE
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
FLANGE: CARBON STEEL, ST.ST.
SIZE: 15~300MM.
