UNID 電動馬達驅動器 | 總覽
mit-UniD®-cns 電動執行器提供了一個平穩、可靠和堅固的驅動系統，全系列皆提供機械指針打開指示器，可用於從驅動器上方或通過接線傳輸至控制箱進行遠端監測，查看閥門打開位置。如果發生電源故障情況下，電動執行器內建手動操作裝置，可確保閥門於緊急或維護時仍能正常切換，避免系統中斷。其結構設計符合工業應用需求，兼具耐用性與可靠性，特別適合嚴苛環境下的長期運行。
我們為客戶提供各種UniD電動執行器，包括直結或托架系列。 UniD 電動推桿可靠、耐用，滿足客戶需求而設計。 我們的團隊致力於專業的流體控制解決方案，幫助您解決問題或疑慮以滿足客戶的需求。 如果您需要更多信息或技術支持，請與我們聯繫。
"mit-UNi-D-cns" 電動執行器
角行程電動執行器（Quarter-Turn Electric Actuators）
我們提供三種角行程電動執行器，全面滿足各種工業應用需求，皆可搭配球閥、蝶閥及其他90度角行程閥門使用。
l 基本型 Basic Type – On/Off 控制
扭力範圍：10Nm
~ 3500Nm
適用於單純開/關控制
可選配故障安全功能（Failsafe）
l 快速型 Fast Type – 高頻快速動作
扭力範圍：10Nm
~ 50Nm
100%佔空比，可持續運轉不過熱
適合快速啟閉應用場景
l 智慧型 Smart Type – 專為調節控製而設計
扭力範圍：6Nm
~ 2500Nm
75%佔空比，內建無刷直流馬達（BLDC）
可選配調節控制
提供備用電源與故障安全的即插即用（Plug & Play）套件
直行程電動執行器（Linear Electric Actuator）
專為線性閥門設計，如閘閥、隔膜閥、截止閥等。
l 行程範圍：60mm / 100mm
l 推力範圍：1000N ~ 10000N
l
可選配功能：
藍牙控制
備用電源
故障安全功能(斷電復歸)
比例調整控制
額外限位開關
如需詳細規格或選用協助，請隨時與我們聯絡或索取產品目錄。我們致力於為您提供最合適的自動化解決方案。
(UM-1 托架式) 電動馬達驅動器
ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
SCRD BALL VAL: 1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
UNION PVC BALL VALVE:
1/2”~1-1/2”
3-WAY SCRD VALVE: 1/2”~1”
UM SERIES WITH MOUNTING KIT
SCRD BALL VAL: 1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
UNION PVC BALL VALVE:
1/2”~1-1/2”
3-WAY SCRD VALVE: 1/2”~1”
(UM2-5 (10W 50Nm) / UM2-7 (15W 70Nm) 托架式) 電動馬達驅動器
UM SERIES WITH MOUNTING KIT
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1”~1-1/2”
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1”~1-1/2”
(UM1 直結式/托架式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE:
1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
3-WAY SCRD VALVE: 1/2”~1-1/2”
(1-1/2”: 15W)
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE:
1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
3-WAY SCRD VALVE: 1/2”~1-1/2”
(1-1/2”: 15W)
(UM-3 托架式) 電動馬達驅動器
ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”
(UM2-1 直結式/托架式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR (15W)
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~1-1/2”
3-WAY SCRD VALVE: 1-1/4”~1-1/2”
BUTTERFLY VALVE: 2"~3"
ELECTRIC ACTUATOR (15W)
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~1-1/2”
3-WAY SCRD VALVE: 1-1/4”~1-1/2”
BUTTERFLY VALVE: 2"~3"
(R5 / R7 直結式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”
(UM-3 直結式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY SCRD VALVE: 2-1/2”
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY SCRD VALVE: 2-1/2”
(UM-3-1 托架式) 電動馬達驅動器帶手輪
ELECTRIC ACTUATOR (8 SEC)
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”
(UM-4 托架式) 電動馬達驅動器
ELECTRIC ACTUATOR (30 SEC)
UM SERIES WITH MOUNTING KIT
SCR 2PC/3PC BALL VALVE: 2”~4”
FLGD BALL VALVE: 1-1/4”~4”
UNION BALL VALVE: 1-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY VALVE: 2-1/2”~3”
UM SERIES WITH MOUNTING KIT
SCR 2PC/3PC BALL VALVE: 2”~4”
FLGD BALL VALVE: 1-1/4”~4”
UNION BALL VALVE: 1-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY VALVE: 2-1/2”~3”
(UM-3-1 直結式/托架式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VAVLE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY VALVE: 2-1/2”
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VAVLE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY VALVE: 2-1/2”

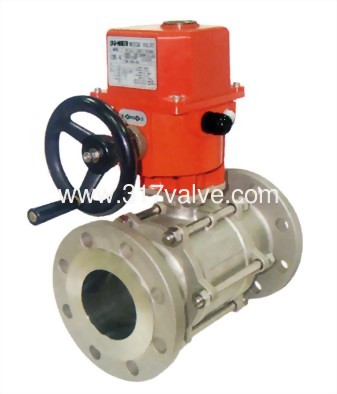

(UM-4 直結式/托架式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR (30 SEC)
SCRD 3PC BALL VLV: 2”~4”
FLGD BALL VALVE: 4-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY FLGD VALVE: 2-1/2”~3”
ELECTRIC ACTUATOR (30 SEC)
SCRD 3PC BALL VLV: 2”~4”
FLGD BALL VALVE: 4-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY FLGD VALVE: 2-1/2”~3”
(UM-5/UM-6 直結式/托架式) 電動馬達驅動器
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
FLGD BALL VALVE: 4”~5”
BUTTERFLY VALVE: 8”~10”
3-WAY FLGD VALVE: 3”~4”
ELECTRIC ACTUATOR
FLGD BALL VALVE: 4”~5”
BUTTERFLY VALVE: 8”~10”
3-WAY FLGD VALVE: 3”~4”
(UM-8/UM-10/UM-11 托架式) 電動馬達驅動器帶手輪
ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
FLGD BALL VALVE: 6”~8”
BUTTERFLY VALVE: 12”~14”
3-WAY VALVE: 5~6”
UM SERIES WITH MOUNTING KIT
FLGD BALL VALVE: 6”~8”
BUTTERFLY VALVE: 12”~14”
3-WAY VALVE: 5~6”
(UM-12 托架式) 電動馬達驅動器
ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
FLGD BALL VALVE: 12”
BUTTERFLY VALVE: 20”~24”
UM SERIES WITH MOUNTING KIT
FLGD BALL VALVE: 12”
BUTTERFLY VALVE: 20”~24”
(UM-R-FW) 頻繁式馬達驅動器
● 24-hour long working time (On and off/minute)，
No Need to worry motor overheat
● IP67 rated waterproof enclosure,
able to install on every outdoors environment
● Low power consumption, High torque electric actuator.
● Max torque up to 6000KGF-CM(UM6-30SEC).
● Manual/Automatic switch Available
● Smooth Opening speed to avoid water hammer and increase pipeline life
No Need to worry motor overheat
● IP67 rated waterproof enclosure,
able to install on every outdoors environment
● Low power consumption, High torque electric actuator.
● Max torque up to 6000KGF-CM(UM6-30SEC).
● Manual/Automatic switch Available
● Smooth Opening speed to avoid water hammer and increase pipeline life
