鑄鐵閥門

317 VALVE SERIES OF IRON VALVE
觀測器, 膜片控制閥, 汽缸控制閥, 浮球閥, ,Y型過濾器, 空氣釋氣閥, 閘刀閥, 橫式逆止閥, 閘閥, 球型閥, 雙瓣逆止閥...等鑄鐵閥門製品。


專業提供使用在石油、化工、冶金、電力、建築、熱力、給排水、水處理等金屬閥門製品。

主要銷售317閥系列 熱力疏水閥,安全閥,減壓閥,球閥,閘閥,截止閥,止回閥,蝶形閥,浮球閥,觀測器,針形閥,對夾式逆止閥,氣動執行器,隔膜和氣缸控制閥,Y型過濾器,水面球考克及水面凡而,空氣釋氣閥,波紋管,膨脹節,撓性接頭(防震接頭/伸縮接頭),曲管,高壓鍛造鐵/不鏽鋼接頭#2000300060009000。  mit-UNiD-cns電磁閥和電動執行器。
顯示模式:

(SK-B2) 鑄鐵觀測器(法蘭口擺片式)

TESTER
CAST IRON SIGHT GLASS
DOUBLE WINDOW.
FLANGED END TO JIS 10K OR ANSI 150 LBS.
DRILLED. BODY: CAST IRON
SIZE: 1/2”~8”

(YS-R3S) 鑄鐵Y型過濾器牙口 CLASS 10K AND 150LBS

CAST IRON Y-STRAINER CLASS 10K
SCREWED END TO BS21, ANSI B2.1
OR DIN-259. BODY: FC20
WITH S.S.SCREEN.
SIZE: 1/2”~3”

(FT-551) CAST IRON & STAINLESS STEEL BALL FLOATING VALVE

CAST IRON BALL FLOATING VALVE
FLANGED END TO JIS 10K, ANSI 150.
DRILLED. BODY: FC20
SIZE: 1-1/2”~8”
ALT. BODY: SUS 304 / SUS 316.
FT304-551 / FT316-551

(PR-3AS) 鑄鐵減壓閥牙口

CAST IRON PRESSURE REDUCING
VALVE CLASS 10K
SCREWED END TO BS21, ANSI B2.1
OR DIN-259. BODY: FC20
SIZE: 1/2”~1”

(YS-R3F) 鑄鐵Y型過濾器法蘭口 CLASS 日規10K/美規150LBS

CAST IRON Y-STRAINER CLASS 10K
FLANGED END TO JIS 10K, ANSI 150 LBS
OR BS4504 STD PN16 OR PN10. BODY: FC20
SIZE: 1-1/2”~12”

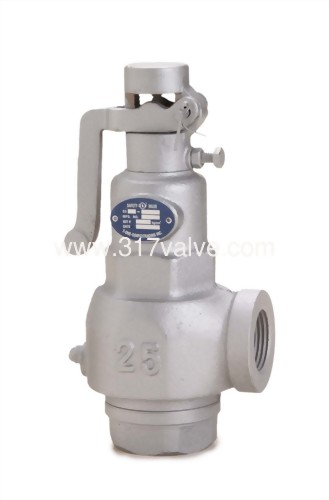

(S3S-LR) 鑄鐵低揚程安全閥把手式 牙口

CAST IRON SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: SUS304.
SET: 1 ~ 10 KGS/CM2.
SIZE: 1/2”~2” (WITH LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34-LR / S36-LR (1~20 KGS/CM2)

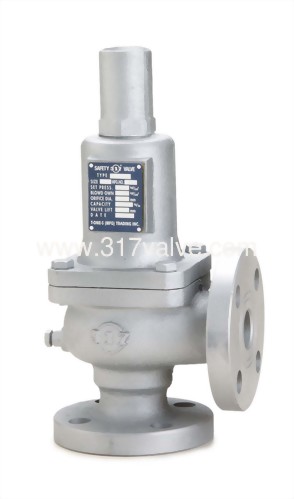

(S3F-A) 法蘭口低揚程鑄鐵安全閥密閉式

CAST IRON SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. DISC: SUS304.
SET P.: 1 ~ 10 KGS/CM2.
SIZE: 1”~12” (WITHOUT LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34F-A / S36F-A (1~20 KGS/CM2)

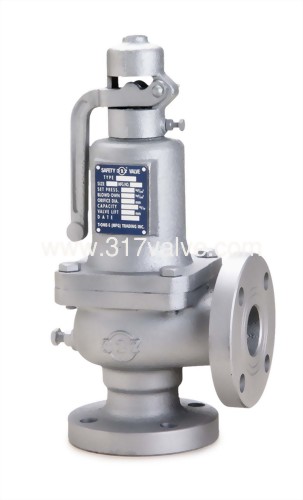

(S3F-LR) 法蘭口低揚程鑄鐵安全閥把手式

CAST IRON SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. DISC: SUS304.
SET P.: 1 ~ 10 KGS/CM2.
SIZE: 1”~12” (WITH LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34F-LR / S36F-LR (1~20 KGS/CM2)

(SVPF-10SA) 牙口全量式鑄鐵安全閥密閉式

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITHOUT LEVER)

(SVPF-10SLR) 牙口全量式鑄鐵安全閥把手式

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)

(SVPF-12SLR) 法蘭口全量式鑄鐵安全閥把手式 法蘭*牙口

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)
ALT. SIZE: (1*2)

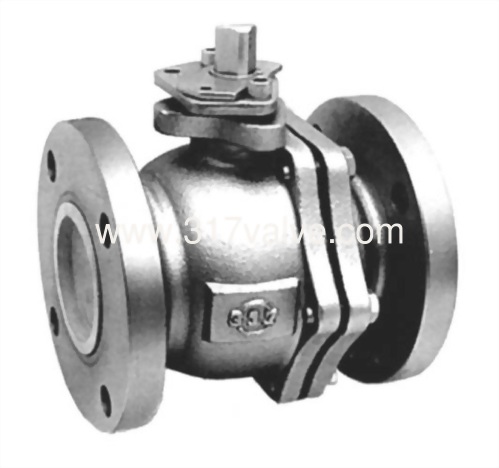

(BV-13F) 鑄鐵二片球塞閥法蘭日規10K

JIS 10K 2-PC BALL VALVE
FLANGED END TO JIS 10K DRILLED
FULL PORT.
BODY: FC20
SIZE: 1/2”~10”

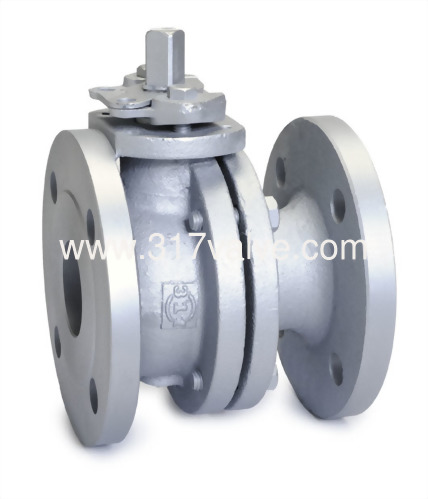

(BV-61F) 鑄鐵二片球塞閥法蘭德規PN10/PN16

DIN PN10/PN16 2-PC BALL VALVE
FLANGED END TO DIN PN10 / PN16.
DRILLED. FULL PORT. F TO F: F4/F5.
BODY: FC20 (ALT.WCB/CF8M)
SIZE: 1/2”~12”

(SK-T6) 鑄鐵觀測器(牙口迷你型)

TESTER
CAST IRON MINI TYPE SIGHT GLASS
SCREWED END TO BS21 OR ANSI B2.1 BODY: CAST IRON
SIZE: 1/2”~2”

(SK-T8) 鑄鐵觀測器(牙口浮球式)

TESTER
CAST IRON SIGHT GLASS
TEFLON BALL INSIDE.
SCREWED END TO BS21 OR ANSI B2.1
BODY: CAST IRON
SIZE: 1/2”~2”
