90° 旋轉電動驅動器

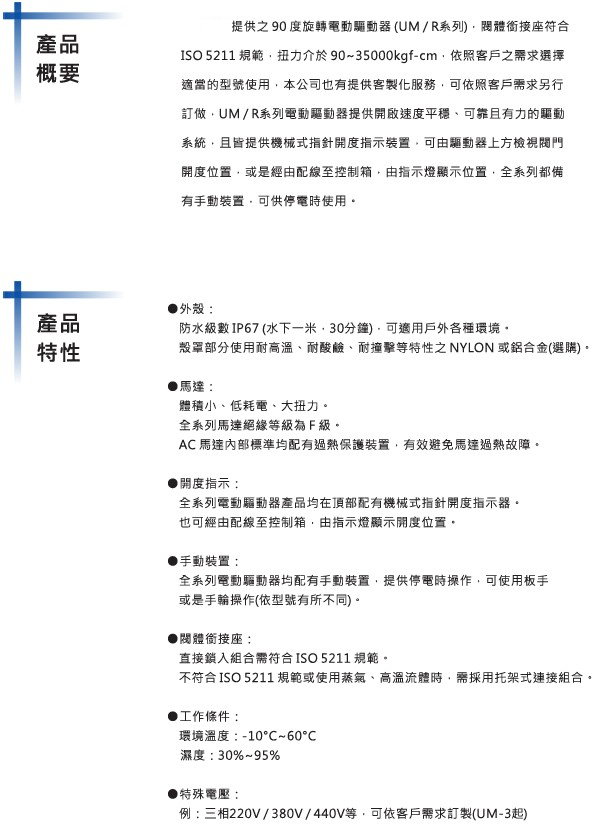

90度旋轉電動驅動器(UM/R系列),閥體銜接座符合ISO5211規範,扭力介於90~35000 kgf/cm,依照客戶之需求選擇適當的型號使用,本公司也提供客製化服務,可依照客戶需求另行訂作。 UM/R系列電動驅動器提供開啟速度平穩、可靠有力的驅動系統,且皆提供機械式指針開度指示裝置,可由驅動器上方檢視閥門開度位置,或是經由配線至控制箱,由指示燈顯示位置,全系列都備有手動裝置,因應停電時使用。


顯示模式:

(UMS 直結式) 電動馬達驅動器

UMS DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2-PC BALL VALVE:
1/4”~1/2”
3-WAY SCRD VALVE: 1/4”~3/8”

(UM-1 托架式) 電動馬達驅動器

ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
SCRD BALL VAL: 1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
UNION PVC BALL VALVE:
1/2”~1-1/2”
3-WAY SCRD VALVE: 1/2”~1”

(UM2-5 (10W 50Nm) / UM2-7 (15W 70Nm) 托架式) 電動馬達驅動器

UM SERIES WITH MOUNTING KIT
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1”~1-1/2”

(R5 (10W 50Nm) Series / R7 (15W 70Nm) 直結式) 電動馬達驅動器

UM SERIES WITH MOUNTING KIT
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1”~1-1/2”

(UM1 直結式/托架式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE:
1/4”~1-1/2”
FLGD BALL VALVE: 1/2”~1”
3-WAY SCRD VALVE: 1/2”~1-1/2”
(1-1/2”: 15W)

(UM-3 托架式) 電動馬達驅動器

ELECTRIC ACTUATOR
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”

(UM2-1 直結式/托架式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR (15W)
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~1-1/2”
3-WAY SCRD VALVE: 1-1/4”~1-1/2”
BUTTERFLY VALVE: 2"~3"

(UM2-1 直結式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR (15W)
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1”~1-1/2”
3-WAY SCRD VALVE: 1-1/4”~1-1/2”
BUTTERFLY VALVE: 2"~3"

(R5 / R7 直結式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”

(UM-3 直結式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY SCRD VALVE: 2-1/2”

(UM-3-1 托架式) 電動馬達驅動器帶手輪

ELECTRIC ACTUATOR (8 SEC)
UM SERIES WITH MOUNTING KIT
SCRD 2PC BALL VALVE: 1-1/4”~3”
FLGD BALL VALVE: 1-1/4”~3”
UNION BALL VALVE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~4”
3-WAY VALVE: 1-1/4”~2-1/2”

(UM-4 托架式) 電動馬達驅動器

ELECTRIC ACTUATOR (30 SEC)
UM SERIES WITH MOUNTING KIT
SCR 2PC/3PC BALL VALVE: 2”~4”
FLGD BALL VALVE: 1-1/4”~4”
UNION BALL VALVE: 1-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY VALVE: 2-1/2”~3”

(UM-3-1 直結式/托架式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCR 2PC/3PC BALL VLV: 1-1/4”~3”
FLGD BALL VAVLE: 1-1/4”~3”
BUTTERFLY VALVE: 2”~5”
3-WAY VALVE: 2-1/2”

(UM-4 直結式/托架式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR (30 SEC)
SCRD 3PC BALL VLV: 2”~4”
FLGD BALL VALVE: 4-1/4”~4”
BUTTERFLY VALVE: 4”~8”
3-WAY FLGD VALVE: 2-1/2”~3”

(UM-5/UM-6 直結式/托架式) 電動馬達驅動器

UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
FLGD BALL VALVE: 4”~5”
BUTTERFLY VALVE: 8”~10”
3-WAY FLGD VALVE: 3”~4”
