UDC-TF
PTFE 2-WAY SOLENOID VALVE
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V. DC24V
CORROSION RESISTANCE. FOR WATER,
AIR USE. SIZE: 1/4”~1”
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V. DC24V
CORROSION RESISTANCE. FOR WATER,
AIR USE. SIZE: 1/4”~1”
(UDC-TF 耐酸鹼中流量系列 PTFE閥體) 直動式通電開型電磁閥
- UDC -TF SERIES IS DIRECT-DRIVE, CONDUCTIVE TO DIAPHRAGM, NORMAL CLOSE.
- VALVE BODY MADE OF PTFE.
- UDC-TF CAN BE OPERATED DIRECTLY WITHOUT PRESSURE.
- SMALL SIZE AND EASY ASSEMBLY.
- STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC.
- SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
- SCREWED END: BSPT, NPT, BSP.
- NORMAL WORKING TEMPERATURE: 80℃.
-
AC VOLTAGE TOLERANCE: +/- 10%
DC VOLTAGE TOLERANCE: +/- 1% -
NOT APPLY FOR FLUID OF
●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
●PROHIBITION FOR HIGH FREQUENCY MOVEMENT.
●VISCOSITY OVER 20 CST.
(UDC-TF Corrosion Resistance Series (PTFE Body)) SOLENOID VALVE

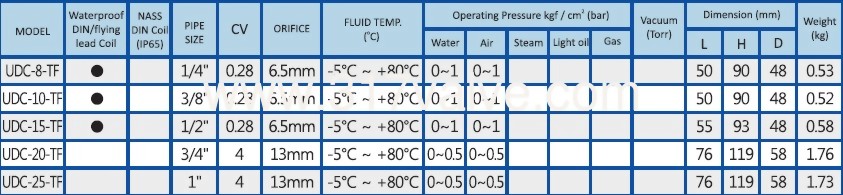

MODEL: UDC+TF Corrosion Resistance Series (PTFE Body)
MODEL: UDC+TF Corrosion Resistance Series (PTFE Body)
