ST-B5F

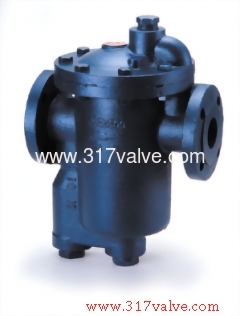

INVERTED BUCKET STEAM TRAP
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY: FC22
ALT. SET: 3, 5, 10, 14, 18 KG/CM2.
SIZE: 1-1/2”~2”

(ST-B5F) 倒筒式却水器法蘭口

數量 :

" NICOSON " BRAND CAST IRON INVERTED BUCKET STEAM TRAP FLANGED END TO JIS 10K OR ANSI 150 DRILLED. SET: 10KG. (3.5/14/18K)

(ST-B1F / ST-B2F / ST-B3F / ST-B4F / ST-B5F / ST-B6F) CAST IRON INVERTED BUCKET STEAM TRAP

When placing order of Steam Trap, please indicate with:

1. Model number.

2. Dimension of pipe connection: Screwed end: BSPT or NPT.

3. Specify type of flanged in detail: Flanged end: JIS 10K or ANSI 150 LBS.

4. Operating pressure setting: 3K / 5 K / 10K / 14K / 18K.

(Maximum : 18 kg/cm²)
