由於氣體膨脹,全量式安全閥的出口直徑大於入口直徑。  安全閥依據設備、流質性質、工作溫度、設定壓力、排放流量等條件選用。 且要適用各種不同的是使用環境等條件,必須謹慎評估。
加入詢價車

總計: 19

顯示模式:
(SVPF-S6A) 全量式不銹鋼316安全閥密閉式 牙口

(SVPF-S6A) 全量式不銹鋼316安...

FULL BORE ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SVPF-S6L) 全量式不銹鋼316安全閥把手式 牙口

(SVPF-S6L) 全量式不銹鋼316安...

FULL BORE ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITH LEVER)

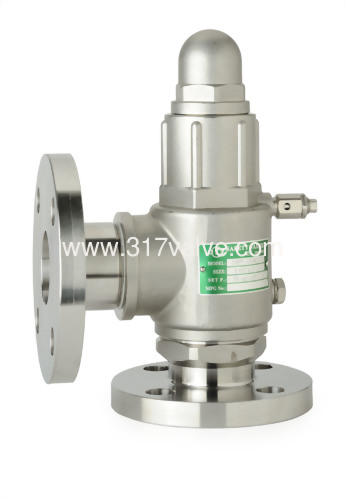

(SVPF-S6AF) 法蘭口全量式不銹鋼316安全閥密閉式

(SVPF-S6AF) 法蘭口全量式不銹...

FULL BORE SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITHOUT LEVER)

(SVPF-S6LF) 法蘭口全量式不銹鋼316安全閥把手式

(SVPF-S6LF) 法蘭口全量式不銹...

FULL BORE SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITH LEVER)

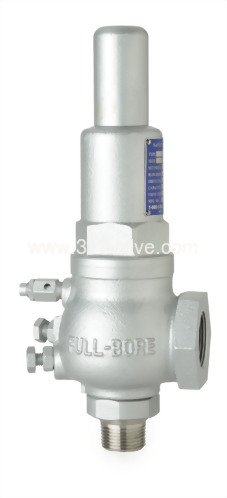

(SVPF-10SA) 牙口全量式鑄鐵安全閥密閉式

(SVPF-10SA) 牙口全量式鑄鐵安...

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITHOUT LEVER)

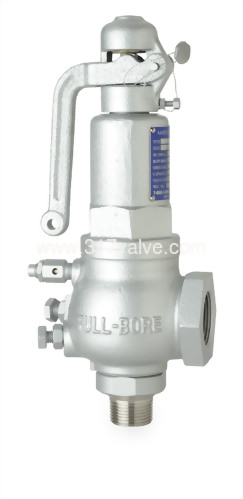

(SVPF-10SLR) 牙口全量式鑄鐵安全閥把手式

(SVPF-10SLR) 牙口全量式鑄鐵...

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)

(SVPF-12SA) 法蘭口全量式鑄鐵安全閥密閉式 法蘭*牙口

(SVPF-12SA) 法蘭口全量式鑄鐵...

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITHOUT LEVER)
ALT. SIZE: (1*2)

(SVPF-12SLR) 法蘭口全量式鑄鐵安全閥把手式 法蘭*牙口

(SVPF-12SLR) 法蘭口全量式鑄...

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)
ALT. SIZE: (1*2)

(SVF-14SA/SVPF-14SA) 牙口全量式不銹鋼304安全閥密閉式 SCW*SCW

(SVF-14SA/SVPF-14SA) 牙口全...

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2) A
SEAL: PTFE (SVPF-14SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)

(SVF-14SLR/SVPF-14SLR) 牙口全量式不銹鋼304安全閥把手式 SCW*SCW

(SVF-14SLR/SVPF-14SLR) 牙口...

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-14SLR)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITH LEVER)

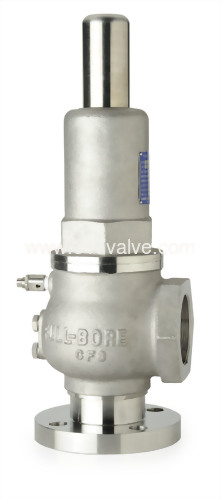

(SVF-16SA/SVPF-16SA) 法蘭口全量式不銹鋼304安全閥密閉式 法蘭*牙口

(SVF-16SA/SVPF-16SA) 法蘭口...

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-16SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)

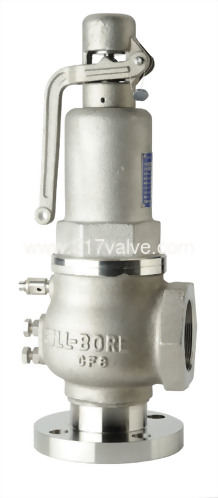

(SVF-16SLR/SVPF-16SLR) 法蘭口全量式不銹鋼304安全閥把手式 法蘭*牙口

(SVF-16SLR/SVPF-16SLR) 法蘭...

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-16SLR)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITH LEVER)

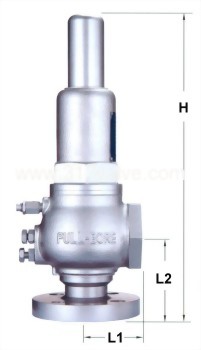

(SVF-20SA) 全量式安全閥密閉式 入口法蘭/出口牙口

(SVF-20SA) 全量式安全閥密閉...

FULL BORE SAFETY RELIEF VALVE
FLANGED - SCREWED END.
SCREWED END TO BS21, ANSI B2.1
BODY: FC. (1*2) DISC: SUS304
SEAT: SUS304 / SUS316.
SET P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SVF-20SLR) 全量式安全閥把手式 入口法蘭/出口牙口

(SVF-20SLR) 全量式安全閥把手...

FULL BORE SAFETY RELIEF VALVE
FLANGED - SCREWED END.
SCREWED END TO BS21, ANSI B2.1
BODY: FC. (1*2) DISC: SUS304
SEAT: SUS304 / SUS316.
SET P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITH LEVER)

(SVF-20FA/SVF-20FLR) 法蘭口全量式不銹鋼安全閥

(SVF-20FA/SVF-20FLR) 法蘭口...

FULL BORE SAFETY RELIEF VALVE
FLANGED - FLANGED END.
BODY: SCS13 / SCS14. (1*2)
SEAT: SUS304 / SUS316.
SET P.: 10-20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2”
